Logistic回归

根据现有数据对分类边界线(Decision Boundary)建立回归公式，以此进行分类。

基础概念

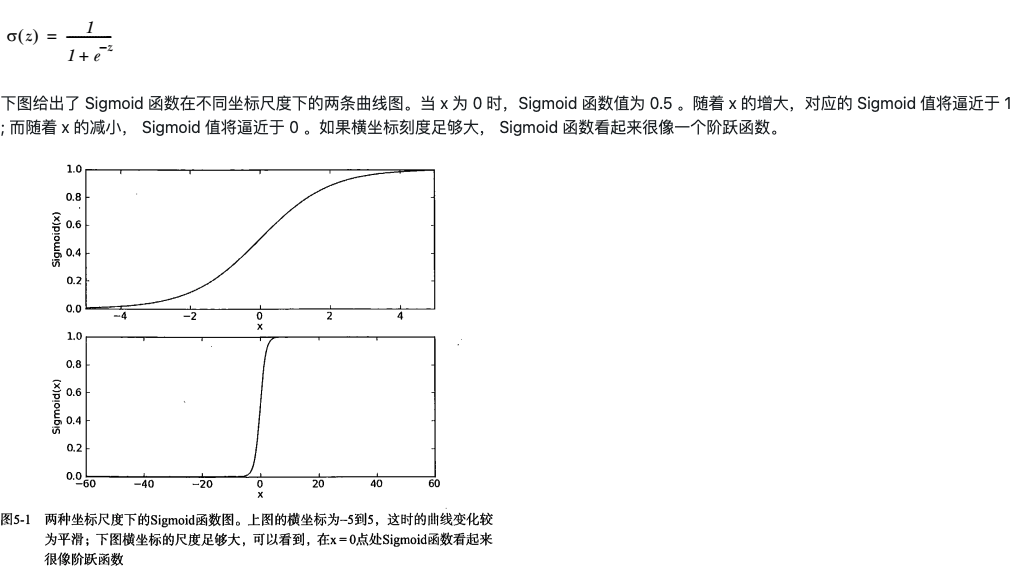

Sigmoid函数

二值型输出分类函数

我们想要函数应该是：能接受所有的输入然后预测出类别。例如，在两个类的情况下，上述函数输出0或1.该函数称为海维赛德阶越函数，或直接称为单位阶越函数。
单位阶越函数的问题在于：该函数在跳跃点上从0瞬间跳跃到1，这个瞬间跳跃的过程有时很难处理。

alt text

实现原理

逻辑回归通过使用逻辑函数(Sigmoid函数)将线性回归的输出映射到0和1之间，从而预测某个事件发生的概率。

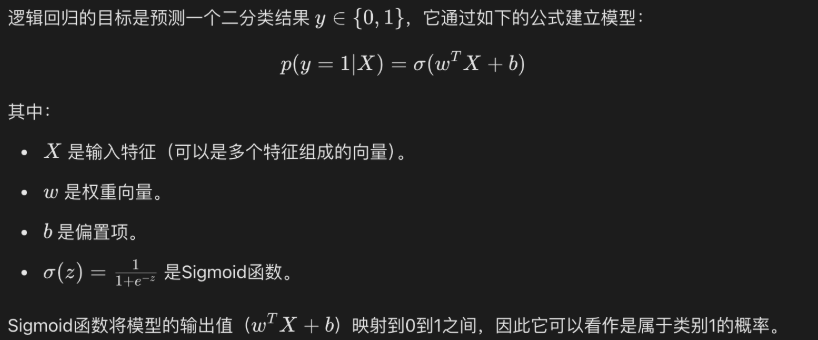

  • 逻辑回归模型
    • alt text

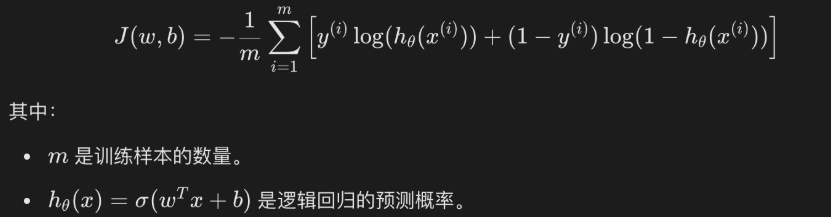

  • 损失函数
    • 逻辑回归的损失函数是对数损失函数(Log Loss)
    • alt text

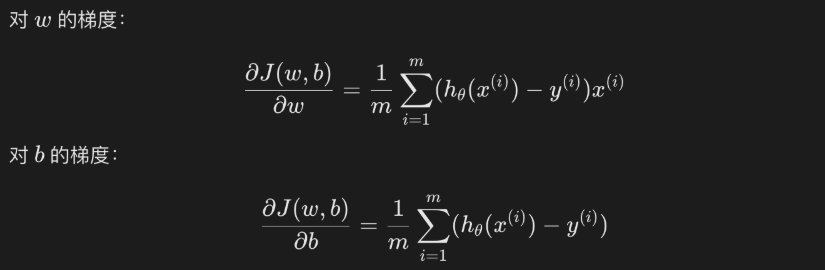

  • 梯度下降法求解
    • 和线性回归一样，逻辑回归通常也使用梯度下降法来优化损失函数，求解参数w和b
    • alt text

实现代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split

# 加载数据集
iris = load_iris()
X = iris.data[0:100]  # 前100个就只有 0 1 二分类
Y = iris.target[0:100]
# 划分训练集和测试集
X_train, X_test, y_train, y_test = train_test_split(X, Y, test_size=0.3, random_state=42)

# 定义逻辑回归模型类
class LogisticRegression:
    def __init__(self, learning_rate=0.01, num_iterations=1000):
        self.learning_rate = learning_rate
        self.num_iterations = num_iterations
        self.weights = None
        self.bias = None

    def sigmoid(self, z):
        return 1 / (1 + np.exp(-z))

    def initialize_parameters(self, n_features):
        self.weights = np.zeros(n_features)
        self.bias = 0

    def compute_cost(self, X, y, weights, bias):
        m = X.shape[0]
        z = np.dot(X, weights) + bias
        predictions = self.sigmoid(z)
        cost = (-1/m) * np.sum(y * np.log(predictions) + (1-y) * np.log(1-predictions))
        return cost

    def fit(self, X, y):
        m, n_features = X.shape
        self.initialize_parameters(n_features)
        costs = []

        for i in range(self.num_iterations):
            # 前向传播
            z = np.dot(X, self.weights) + self.bias
            predictions = self.sigmoid(z)

            # 计算梯度
            dw = (1/m) * np.dot(X.T, (predictions - y))
            db = (1/m) * np.sum(predictions - y)

            # 更新参数
            self.weights -= self.learning_rate * dw
            self.bias -= self.learning_rate * db

            # 记录每次迭代的损失
            cost = self.compute_cost(X, y, self.weights, self.bias)
            costs.append(cost)
            print(f"Iteration {i}, Cost: {cost:.6f}")

        return costs

    def predict(self, X):
        z = np.dot(X, self.weights) + self.bias
        predictions = self.sigmoid(z)
        return (predictions >= 0.5).astype(int)

    def score(self, X, y):
        predictions = self.predict(X)
        accuracy = np.mean(predictions == y)
        return accuracy

# 创建并训练模型
model = LogisticRegression(learning_rate=0.1, num_iterations=10)
costs = model.fit(X_train, y_train)

# 绘制损失曲线
plt.figure(figsize=(10, 6))
plt.plot(range(len(costs)), costs, 'b-', label='Training Loss')
plt.xlabel('Iterations')
plt.ylabel('Cost')
plt.title('Training Loss Curve')
plt.legend()
plt.grid(True)
plt.show()

# 评估模型
train_accuracy = model.score(X_train, y_train)
test_accuracy = model.score(X_test, y_test)

print(f"\n训练集准确率: {train_accuracy:.4f}")
print(f"测试集准确率: {test_accuracy:.4f}")
